7.1 Speaker Plate Set (Architrave Plates)
Maximum Channels, Minimal Footprint: 7.1 Architrave Speaker Plate Set
Running a multi-channel 7.1 surround system in a room with limited wall space requires smart solutions. The 7.1 Architrave Speaker Plate Set delivers full 7-channel and subwoofer routing using ultra-narrow architrave outlets for satellite speakers. Perfect for positioning connections right next to door architraves or tight corners, this set provides high-performance audio connectivity without overwhelming your room’s decor.
Original price was: £205.48.£168.00Current price is: £168.00.
- Description
- 7.1 Setup Guide
- Custom Speaker Wall Plates
- Q & A
- Reviews (0)
Description
Architectural Versatility for 7.1 Home Cinema Projects
1. Slimline Architrave Form Factor
-
The Benefit: Fits neatly onto narrow wood trim, doorframes, or tight drywall sections where standard 86mm plates won’t fit.
-
Key Feature: Satellite speaker outlets measure just 32mm x 86mm for a minimal visual footprint.
2. Complete Master-to-Satellite Package
-
The Benefit: Connects all seven surround speakers and the active subwoofer to one centralised hub behind the AV receiver.
-

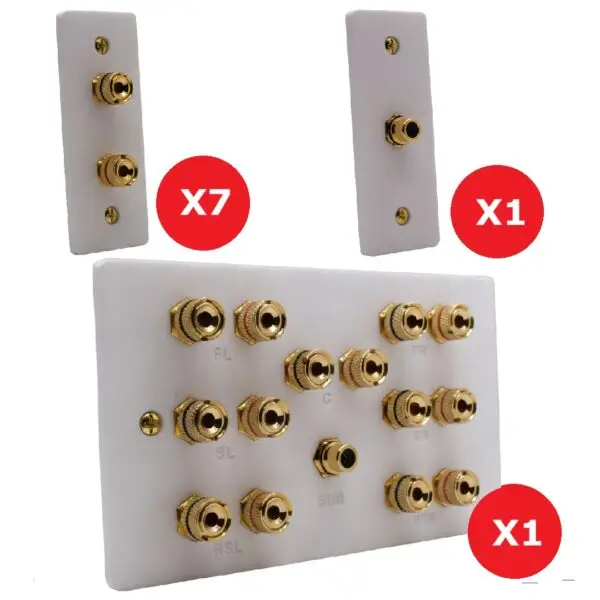

Key Feature: Includes 1x Double Gang 7.1 Main Plate, 7x Architrave Speaker Plates, 1x Architrave Subwoofer Plate, and 2x Right-Angle RCA Adapters.
3. Solderless, High-Conductivity Posts
-
The Benefit: Simple, hassle-free installation behind the wall with no delicate soldering required.
-
Key Feature: Gold-plated front and rear binding posts ensure optimal signal integrity and fit standard 4mm banana plugs.
4. Tailored to Your Home Aesthetics
-
The Benefit: Lets your installations match your design vision, making your work look polished and intentional.
-
Key Feature: Speaker Post Caps come in black or white, with easy identification bands for + and – channels. These caps fit over our gold-plated speaker post thumb screws while still allowing the binding posts to operate and banana plugs to fit. Available for the front only or for the front and back. To add these to your order, please see options above. When you order speaker caps, we also provide screws that match your plate to keep everything looking as discreet as possible.
Optional Cable Crimp Sleeve Ferrules
Protect your speaker cables from potential damage and oxidisation with our OFC 24-carat gold-plated crimp sleeve ferrules. For this connection plate, you’ll need X2 for the back of the speaker plate and X2 for the speaker end. To order, please click one of the links below
Click here for 1.5mm crimp ferrules for 16AWG cables
Click here for 2.5mm crimp ferrules for 14AWG cables
Technical Breakdown & Specifications
-
Dimensions: Architrave Outlet Plates: 32mm x 86mm; Main 7.1 Receiver Hub: 146mm x 86mm.
-
Enclosure Fit: Architrave plates fit standard UK architrave back boxes; main hub fits standard UK double-gang back boxes.
-
Package Extras: Includes fixing screws and 2x right-angle RCA connectors for low-profile subwoofer wiring.
7.1 Main Plate Labelling
| Engraving | Speaker Location |
|---|---|
| FL | Front Left Speaker |
| FR | Front Right Speaker |
| C | Centre Speaker |
| SL | Surround Left Speaker |
| SR | Surround Right Speaker |
| RSL | Rear Surround Left Speaker |
| RSR | Rear Surround Right Speaker |
| SUB | Subwoofer Speaker |
Installers Tip
The 7.1 architrave speaker wall plate and subwoofer plate are all cabled from the speaker locations to the main plate, which is located behind the AV receiver. They provide a dedicated point of connection, making future upgrades of the speakers or home cinema AV receiver easy.
Click here for banana plugs to go with the speaker plates.
7.1 Setup Guide
For more in-depth information on speaker placement, please visit Dolby or download the Dolby 7.1 Home Cinema Speaker Guide.
Looking for information on another Dolby Surround Sound or Atmos Layout? Please see our recent blog post, Surround Sound Speaker Placement Guide.
At AV Installs, we manufacture all of our speaker wall plates here in the UK. We offer a wide range of standard speaker connection plates to suit most applications and provide custom services when required. If you are looking for something that is not in our standard catalogue or would like to modify an existing plate, please contact us for more details. Our friendly staff are always happy to help, and we have short lead times for custom orders.
