5.1 Speaker Plate Set (Architrave Plates)
Slimline Space-Saver:Â
When wall space is at a premium, or you are mounting surround speakers directly alongside door frames and narrow skirting, standard wall plates can be too wide. The 5.1 Architrave Speaker Plate Set combines a centralised double-gang receiver hub with ultra-compact architrave terminal plates. Handcrafted in the UK, it provides a clean, unobtrusive connection point specifically designed for smaller satellite speakers and tight architectural spaces.
Original price was: £152.47.£126.00Current price is: £126.00.
- Description
- Custom Speaker Wall Plates
- 5.1 Setup Guide
- Q & A
- Reviews (0)
Description
Discreet Cable Routing for Tight Spaces & Compact Speakers
1. Ultra-Narrow Form Factor
-
The Benefit: Mounts easily on door architraves, narrow studs, or timber framing without overhang, trim damage, or oversized plasterboard cuts.
-
Key Feature: Slimline architrave satellite plates measure just 32mm wide.
2. Complete 5.1 Distribution
-
The Benefit: Connects your entire surround sound array back to a master terminal hub situated directly behind your AV receiver.
-

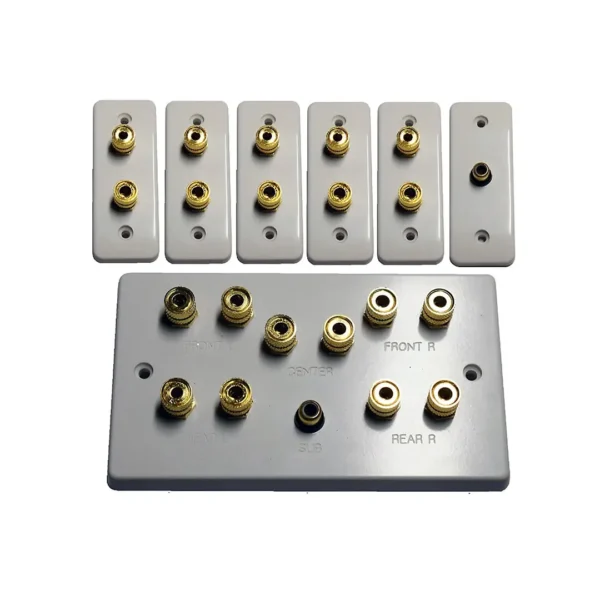

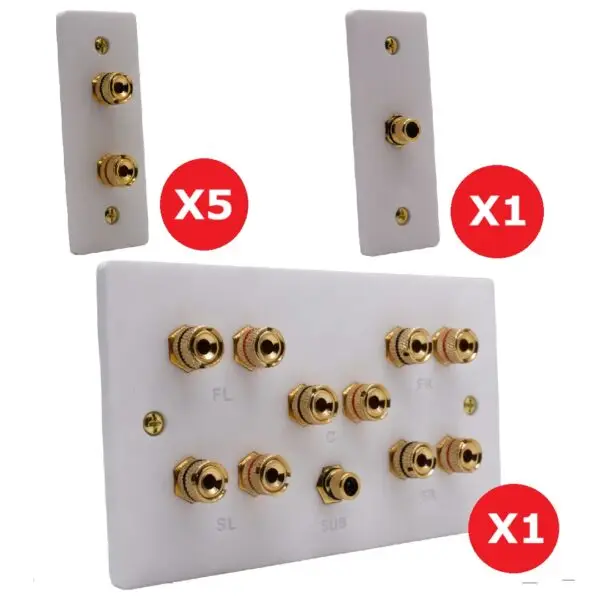

Key Feature: Includes 1x Double Gang 5.1 Main Plate, 5x Architrave Speaker Plates, 1x Architrave Subwoofer Plate, and 2x Right-Angle RCA Adapters.
3. Gold-Plated Signal Reliability
-
The Benefit: Guarantees uncompromised audio pass-through with high corrosion resistance over time.
-
Key Feature: Universal gold-plated binding posts accept 4mm banana plugs or bare wire on all satellite plates and the main hub.
4. Tailored to Your Home Aesthetics
-
The Benefit: Lets your installations match your design vision, making your work look polished and intentional.
-
Key Feature: Speaker Post Caps come in black or white, with easy identification bands for + and – channels. These caps fit over our gold-plated speaker post thumb screws while still allowing the binding posts to operate and banana plugs to fit. Available for the front only or for the front and back. To add these to your order, please see options above. When you order speaker caps, we also provide screws that match your plate to keep everything looking as discreet as possible.
Optional Cable Crimp Sleeve Ferrules
Protect your speaker cables from potential damage and oxidisation with our OFC 24-carat gold-plated crimp sleeve ferrules. For this connection plate, you’ll need X2 for the back of the speaker plate and X2 for the speaker end. To order, please click one of the links below
Click here for 1.5mm crimp ferrules for 16AWG cables
Click here for 2.5mm crimp ferrules for 14AWG cables
Technical Breakdown & Specifications
-
Dimensions: Architrave Plates: 32mm x 86mm; Main Double-Gang Plate: 146mm x 86mm.
-
Box Compatibility: Satellite plates fit standard UK architrave back boxes; main plate fits standard UK 2-gang back boxes.
-
Installation: Solder-free connection posts at the front and rear for fast, straightforward wiring.
Main plate is engraved as follows.
| Engraving | Speaker Location |
|---|---|
| FL | Front Left Speaker |
| FR | Front Right Speaker |
| C | Centre Speaker |
| SL | Surround Left Speaker |
| SR | Surround Right Speaker |
| SUB | Subwoofer Speaker |
Installation Tip
The architrave speaker plates and subwoofer plate are all cabled from the speaker locations to the main plate behind the AV receiver. They provide a dedicated connection point, making future speaker upgrades or AV receiver changes easy. We hand-make all our speaker plates in the UK to order, and we can also provide custom speaker plates if needed.
Click here for banana plugs to go with the speaker plates.
At AV Installs, we manufacture all of our speaker wall plates here in the UK. We offer a wide range of standard speaker connection plates to suit most applications and provide custom services when required. If you are looking for something that is not in our standard catalogue or would like to modify an existing plate, please contact us for more details. Our friendly staff are always happy to help, and we have short lead times for custom orders.
5.1 Surround Sound Setup Guide
For an in-depth look at speaker placement, please visit Dolby or download the Dolby 5.1 Home Cinema Speaker Guide.
Looking for information on another Dolby Surround Sound or Atmos Layout? Please see our recent blog post, Surround Sound Speaker Placement Guide.Â
